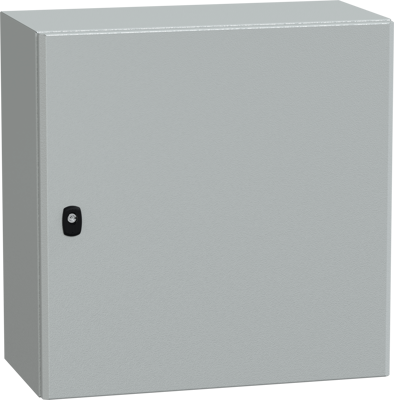

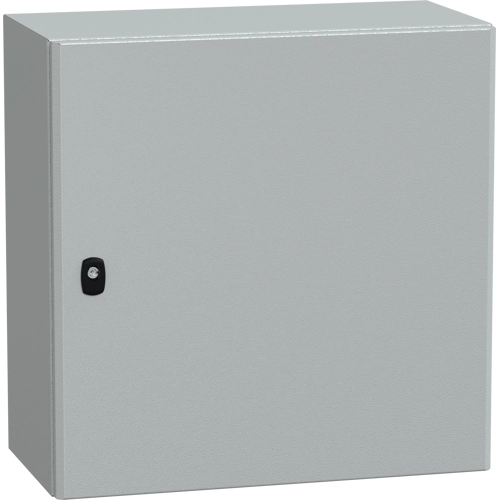

Wall mounted steel enclosure, NSYS3D6630, Schneider Electric
Spacial S3D is a wall-mounting enclosure for multi-purpose applications. It is made of steel with an epoxy-polyester powder surface finish and is grey in colour (RAL 7035). The enclosure has a nominal height, width and depth of 600 mm, 600 mm and 300 mm, respectively. It is certified by UL, cUL, GL, LR, BV and DNV and has a NEMA 4 x /13 rating It is also IK10 (IEC62262) rated, meaning. It can withstand high impacts, and has an IP66 (IEC60529) rating, making it dust and water-resistant.
The enclosure consists of a body, one plain door, one lock and one cable gland plate the door can be opened up to 120° and can be reversed, allowing easy access to the equipment inside It has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 16,57 kg.
