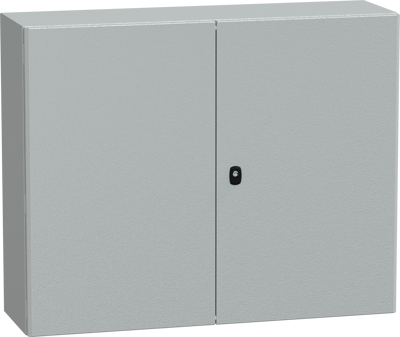

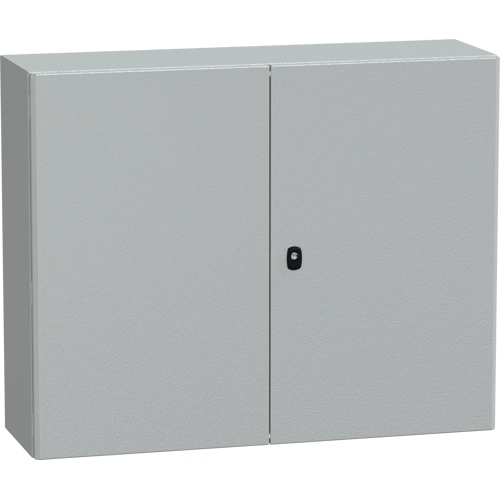

Wall mounted steel enclosure, NSYS3D81030DP, Schneider Electric
Spacial S3D is a multi-purpose wall-mounting enclosure designed for use in harsh environments. It is certified for cUL, UL, GL, DNV, BV, and LR standards and has a nominal height, width and depth of 800 mm, 1000 mm and 300 mm, respectively the enclosure is built with steel and has a grey colour (RAL 7035) with an epoxy-polyester powder surface finish It consists of a body, two cable gland plates, two plain doors with locks and a mounting plate made of galvanized steel.
The doors can be opened up to 120° and the lock type is three points lock with a 3 mm double-bar. The doors, cable gland plates and mounting plate are removable for maintenance purposes, the net weight of the enclosure is 51 kg It has an IK10 rating (IEC62262) and an IP55 rating (IEC60529). The variant particularity of the enclosure is a single piece body and gutter-shaped front rail double sheet thickness the accessibility for operation is from the front.
