NSYS3D8625 | Schneider Electric

Door, (H x W x D) 800 x 600 x 250 mm, IP66, steel, light gray, NSYS3D8625

Order No.: 02P2455
EAN: 3606480158971
MPN:
NSYS3D8625
Series: Spacial S3D
Schneider Electric
NSYS3D8625 Schneider Electric Switch Cabinets, server cabinets
Image may differ
Unit Price (€ / pc.)
192.9228 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
192.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
192.9228 €

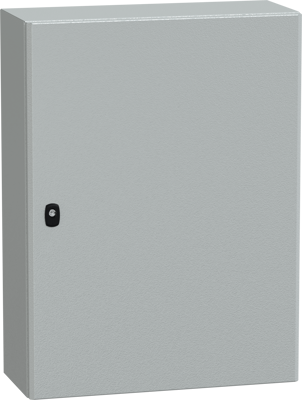

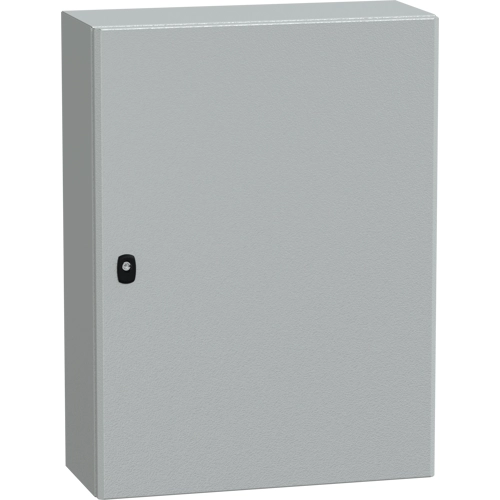

Wall mounted steel enclosure, NSYS3D8625, Schneider Electric

Spacial S3D is a monobloc wall-mounting enclosure designed for multi-purpose applications. It is made of steel with an epoxy-polyester powder finish and is grey-coloured (RAL 7035). This enclosure has a nominal height, width and depth of 800 mm, 600 mm and 250 mm, respectively. The enclosure has a single door with a three-point lock and a 3 mm double-bar insert.

The door is reversible, allowing it to be opened up to 120° for easy access to the equipment inside It has a NEMA 4X/13 rating and an IP66 (IEC 60529) rating for dust and water resistance Furthermore, it has an IK10 (IEC 62262) rating for high impact resistance. The enclosure consists of a body, a door, a lock, and a cable gland plate. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 20,2 kg It is certified by cUL, BV, GL, UL, LR, and DNV.

Technical specifications
Version wall cabinet
Width 600 mm
Colour light gray
Height 800 mm
Material steel
Degree of protection (IP) IP66
Depth 250 mm
Logistics
Country of origin FR
Customs tariff number 85381000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Sustainable Yes
