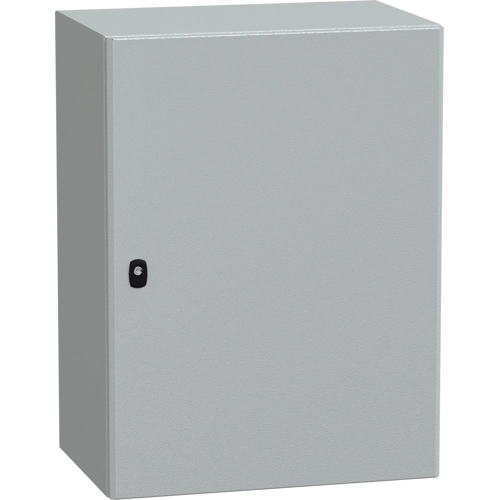

Wall mounted steel enclosure, NSYS3D8640P, Schneider Electric
Spacial S3D is a multi-purpose wall-mounting steel enclosure with a nominal height, width and depth of 800 mm, 600 mm and 400 mm, respectively the enclosure is grey-coloured (RAL-7035) and has an epoxy-polyester powder surface finish, making it highly resistant to corrosion. The enclosure consists of a body, a mounting plate, a door with a lock and a cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible). The door has a three-point lock with a 3 mm double-bar insert.
The door and the cable gland plate can be removed for maintenance purposes, the mounting plate is made of galvanised steel and is secured with fixing elements, the net weight of the enclosure is 36 kg It is certified by GL, BV, UL, LR, DNV and cUL It has a NEMA 4X/13 rating, IK10 (IEC62262) rating and IP66 (IEC60529) rating, making it highly resistant to dust, water and impact It has a single-piece body and a gutter-shaped front rail double sheet thickness the accessibility of the equipment is through the front.
