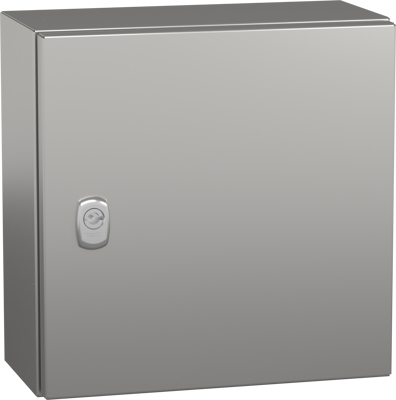

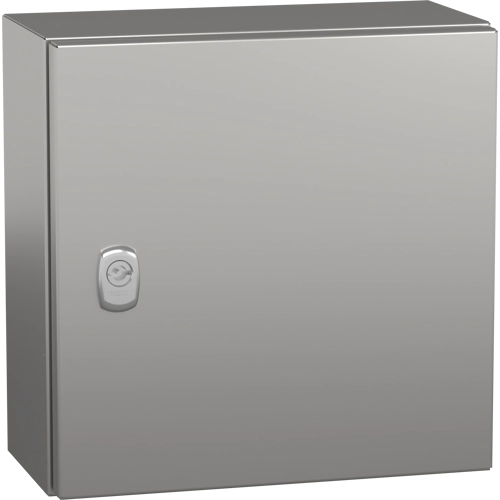

Wall mounted steel enclosure, NSYS3X3315, Schneider Electric
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments. The enclosure has a nominal height, width and depth of 800 mm, 800 mm and 300 mm, respectively the enclosure is with an epoxy-polyester powder surface finish. The enclosure consists of a body, two cable gland plates, a mounting plate and a door with lock the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plates can be removed for maintenance purposes, the mounting plate is made of galvanised steel and is fixed with a fixing element, the net weight of the enclosure is 42 kg It has a NEMA 4X/13 rating and a IK10 (IEC62262) and IP66 (IEC60529) rating for high impact and dust and water resistance.
