NSYS3X4320H | Schneider Electric

Wall enclosure, (H x W x D) 400 x 300 x 200 mm, IP66, stainless steel, NSYS3X4320H

Order No.: 02P2486
EAN: 3606480155123
MPN:
NSYS3X4320H
Series: SPACIAL S3X
NSYS3X4320H Schneider Electric Switch Cabinets, server cabinets
Image may differ
Unit Price (€ / pc.)
448.8323 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
448.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
448.8323 €

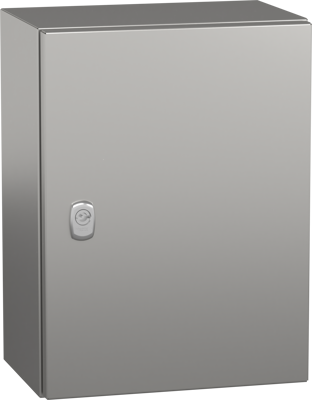

Wall mounted steel enclosure, NSYS3X4320H, Schneider Electric

Spacial S3 x stainless steel 316L wall-mounting enclosure is perfect for multi-purpose applications and is designed for use in harsh environments It is certified to CAN/CSA 22 and UL 508 type A, and has a IK10 (IEC62262) rating and IP66 (IEC60529) rating for high resistance to dust and water. The enclosure has a nominal height, width and depth of 400 mm, 300 mm and 200 mm respectively the enclosure is made with Scotch-Brite brushed surface finish and has a single piece body with a cross-shaped structure and a gutter shaped front rail.

It has one plain door with a 3 mm double-bar lock, which can be opened up to 120°, allowing easy access to the equipment inside the door can be removed for maintenance purposes and the reversible opening side of the door allows for fle x ibility, the net weight of the enclosure is 5,594 kg.

Technical specifications
Breite 300 mm
Höhe 400 mm
Material Edelstahl
Produkt-Art Wandgehäuse
Schutzart (IP) IP66
Tiefe 200 mm
Logistics
Ursprungsland BG
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
