NSYS3X6420 | Schneider Electric

Wall enclosure, (H x W x D) 600 x 400 x 200 mm, IP66, stainless steel, NSYS3X6420

Order No.: 02P2492
EAN: 3606480155215
MPN:
NSYS3X6420
Series: SPACIAL S3X
NSYS3X6420 Schneider Electric Switch Cabinets, server cabinets
Image may differ
Unit Price (€ / pc.)
346.2781 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
346.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
346.2781 €

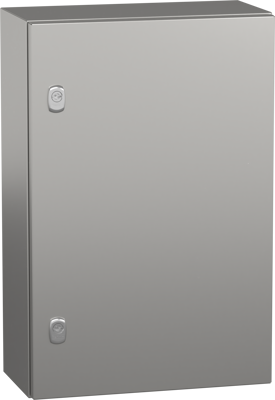

Wall mounted steel enclosure, NSYS3X6420, Schneider Electric

Spacial S3 x stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion. It is designed for use in harsh environments. It can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529). This enclosure has a nominal height, width and depth of 600 mm, 400 mm and 200 mm respectively the enclosure is made with Scotch-Brite brushed surface finish.

The enclosure consists of a body, a plain door and two locks the door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible). The door has a two lock points lock with a 3 mm double-bar insert the door can be removed for maintenance purposes, the net weight of the enclosure is 9,446 kg It is UL 508 type A and CAN/CSA 22 certified.

Technical specifications
Breite 400 mm
Höhe 600 mm
Material Edelstahl
Produkt-Art Wandgehäuse
Schutzart (IP) IP66
Tiefe 200 mm
Logistics
Ursprungsland BG
Zolltarifnummer 94032080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
