33514 | Schneider Electric
Electronic trigger, for circuit breaker, 33514
Electronic trigger, 33514, Schneider Electric

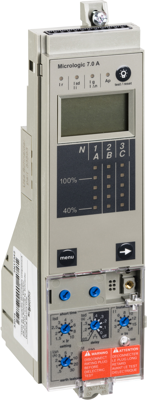

Micrologic 7.0A (Ammeter) is an electronic trip unit used on Compact NS630b to NS3200 circuit breakers. This control unit has a selective and earth - leakage protection, and is designed to protect power circuits and loads. It embeds adjustable long time protection against overloads. It provides also adjustable short - time protection and instantaneous protection against short - circuits. Micrologic 7.0A offers an adjustable residual earth leakage protection. Micrologic 7.0A indicates overloads with an Alarm LED. It is able to display the trip cause through 4 others LEDs. Micrologic 7.0A is equipped with a digital LCD screen that displays the true RMS current values with 1.5% accuracy. This trip unit can be associated with Compact NS basic frame.
| Suitable for | circuit breaker | |
| Accessory Type | electronic trigger |
| Country of origin | NL |
| Customs tariff number | 85389099 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME), Lead |
