47283 | Schneider Electric
Trip unit, electronic triggers, for NT/NW, 47283
Order No.: 01P4574
EAN: 4099889299687
MPN:
47283
Unit Price (€ / pc.)
1,722.5369 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,722.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,722.5369 €

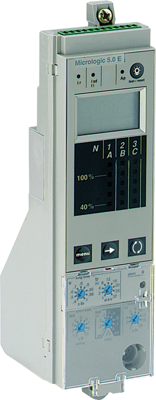

Micrologic, 47283, Schneider Electric
Micrologic 5.0E (Energy meter) is an electronic control unit used on Masterpact NT 06 to 16 and Masterpact NW 08 to 63 fixed circuit breakers. This control unit has a selective protection (LSI) and is designed to protect power circuits and loads. It embeds adjustable long time protection against overloads. It provides also adjustable short - time protection and instantaneous protection against short - circuits. Micrologic 5.0E indicates overloads with an Alarm LED. It is able to display the trip cause through 3 others LEDs. Micrologic 5.0E is equipped with a digital LCD screen that displays the active energy with 2% accuracy. This control unit can be associated with fixed Masterpact NT and NW basic frame.
Technical specifications
| Version | electronic triggers | |
| Suitable for | NT/NW | |
| Accessory Type | Trip unit |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 90303900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead, 4,4'-isopropylidenediphenol |
