8536SCO3V02S | Schneider Electric

Starter, 3 phases, (L x W x H) 107.19 x 88.9 x 172.96 mm, 8536SCO3V02S

Order No.: 01P6369
EAN: 4099889302806
MPN:
8536SCO3V02S
Schneider Electric
8536SCO3V02S Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
650.4064 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
650.41 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
650.4064 €

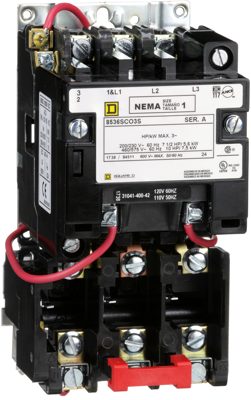

Motor starter, 8536SCO3V02S, Schneider Electric

This 3 pole NEMA Size 1 non - reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non - reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non - reversing NEMA motor starters are UL listed and CSA certified.

Features

  • Flexible with four overload relays types
  • Customizable with hundreds of combinations
  • Streamline installation, wiring, maintenance and field modifications
  • Reliable build for long mechanical life and electrical endurance
  • Ideal for use in construction, industrial markets, building automation
Technical specifications
Version 3 phases
Width 88.9 mm
Height 172.96 mm
Length 107.19 mm
Accessory Type starter
Logistics
Country of origin MX
Customs tariff number 85365080
Compliance
RoHS conform No
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME)
Sustainable Yes
