A9A26478 | Schneider Electric
Shunt releases, 12-24 V AC/DC, (W) 18 mm, white, for Acti 9, A9A26478
Unit Price (€ / pc.)
37.2351 € *
Available: 0 pcs.
Leadtime: On Request **

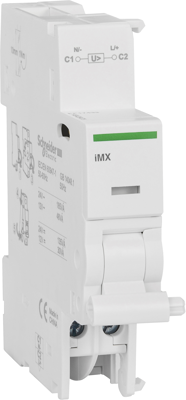

Voltage release, A9A26478, Schneider Electric
This Acti9 iMX electrical tripping for auxiliary is a Voltage release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. The width in 9 mm pitches is 2. The Uc control circuit voltage is 12-24 VAC or 12-24 VDC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25 °C to + 50 °C. The storage temperature is -40 °C to +85 °C. This product complies with IEC/EN 60947-5-1 standards.
Technical specifications
| Version | 12-24 V AC/DC | |
| Width | 18 mm | |
| Colour | white | |
| Suitable for | Acti 9 | |
| Accessory Type | shunt releases |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
