A9A26947 | Schneider Electric
Shunt releases, 48 V AC/DC, (W) 18 mm, white, for Acti 9, A9A26947
Unit Price (€ / pc.)
51.9554 € *
Available: 0 pcs.
Leadtime: On Request **

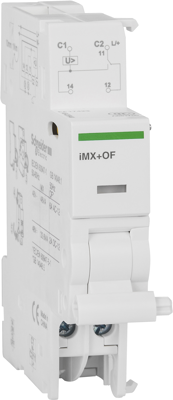

Voltage release, A9A26947, Schneider Electric
This Acti9 iMX+OF electrical tripping auxiliary for is a Voltage release device with open/close auxiliary contact. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9 mm pitches is 2. The Uc control circuit voltage is 48 VAC or 48 VDC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25 °C to + 50 °C. The storage temperature is -40 °C to + 85 °C. This product complies with IEC/EN 60947-5-1 standards.
Technical specifications
| Version | 48 V AC/DC | |
| Width | 18 mm | |
| Colour | white | |
| Suitable for | Acti 9 | |
| Accessory Type | shunt releases |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
