A9A26948 | Schneider Electric
Shunt releases, 12-24 V AC/DC, (W) 18 mm, white, for Acti 9, A9A26948
Unit Price (€ / pc.)
51.9554 € *
Available: 0 pcs.
Leadtime: On Request **

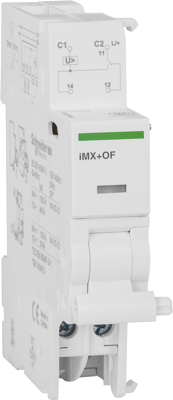

Voltage release, A9A26948, Schneider Electric
This Acti9 iMX+OF electrical auxiliary is a shunt release device with open/close auxiliary contact. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the circuit breaker. Emergency stoppage by normally open pushbutton. It provides a remote indication of the position of the associated device. The width in 9 mm pitches is 2. The product trips the associated device when it is powered on. The In rated operational current is from 10mA (mini) up to 6A (maxi) under 24VDC, 48VDC, 130VDC, 240VDC, 415 VDC. The operating temperature is -35 °C to + 70 °C. The storage temperature is -40 °C to + 85 °C. This product complies with IEC/EN 60947-5-1 standards.
Technical specifications
| Version | 12-24 V AC/DC | |
| Width | 18 mm | |
| Colour | white | |
| Suitable for | Acti 9 | |
| Accessory Type | shunt releases |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
