A9C70124 | Schneider Electric
Remote drive, 230 VAC, (L x W x H) 75.5 x 63 x 93 mm, white, for iC60, A9C70124
Unit Price (€ / pc.)
227.2543 € *
Available: 0 pcs.
Leadtime: On Request **

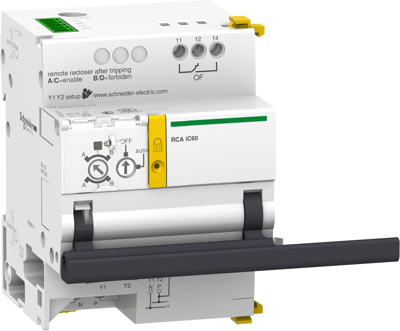

Remote drive, A9C70124, Schneider Electric
This Acti9 RCA remote control system is dedicated to iC60 circuit breakers. It allows remote electrical control OF of circuit breakers with or without Vigi add - on RCD, with or without auxiliary. It allows circuit breaker reseting after tripping, in accordance with safety principles and regulations in force. The width in 9mm pitches is 7. This device controls 3P, 4P installations with Ti24 interface. it allows local control by operating handle. The Ue rated operational voltage is 230 VAC. The operating frequency is 50 Hz or 60 Hz. The circuit is placed in safety configuration by the padlocking device. 2 choices of operation after tripping are possible (A) Enabling of remote circuit breaker resseting or (B) Inhibition of remote resetting.
Technical specifications
| Version | 230 VAC | |
| Width | 63 mm | |
| Colour | white | |
| Suitable for | iC60 | |
| Height | 93 mm | |
| Length | 75.5 mm | |
| Accessory Type | remote drive |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
