LV426803 | Schneider Electric
Undervoltage release, 110-130 VAC/125 VDC, for circuit breaker, LV426803
Unit Price (€ / pc.)
122.3439 € *
Available: 0 pcs.
Leadtime: On Request **

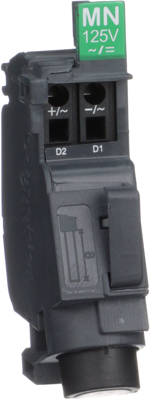

Voltage release, LV426803, Schneider Electric
This standard MN undervoltage release is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote tripping applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MN auxiliary has a 110/130 VAC 50/60 Hz or 125 VDC rated voltage. It trips the circuit breaker when the control voltage drops below 35% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Technical specifications
| Version | 110-130 VAC/125 VDC | |
| Suitable for | circuit breaker | |
| Accessory Type | undervoltage release |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85363010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Sustainable | Yes |
