LV429272 | Schneider Electric

Auxiliary circuit plug, 9 pole, for NSX100/630, LV429272

Order No.: 03P5231
EAN: 4099889308310
MPN:
LV429272
Series: Compact
Schneider Electric
LV429272 Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
82.9311 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
82.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
82.9311 €

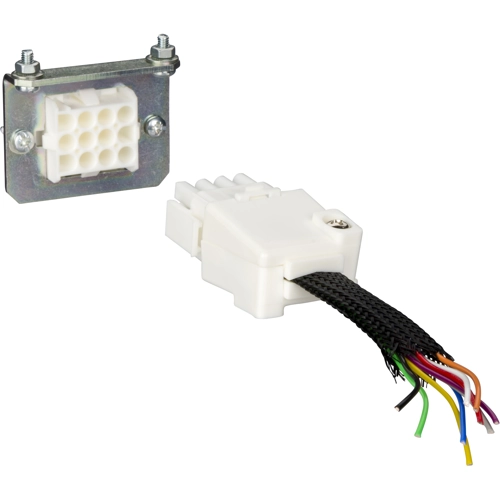

Auxiliary connector, LV429272, Schneider Electric

This is a manual connector for Compact NSX 100 to 630 auxiliaries connection. It is adapted for withdrawable circuit breakers. It is made of a fixed and a moving part with 9 wires. The terminal block has numbered terminals for the connection of wires. The wire section is 1.5mm² for auxiliary contacts and voltage releases. The wire section is 2.5mm² for motor mechanisms. The circuit breaker can be equipped with 3 manual connectors with 9 wires each. When the withdrawable circuit breaker is in disconnected position, the auxiliaries remain connected.

Technical specifications
Version 9 pole
Suitable for NSX100/630
Accessory Type auxiliary circuit plug
Logistics
Country of origin FR
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
