LV429402 | Schneider Electric
Undervoltage release, 12 VDC, for circuit breaker, LV429402
Unit Price (€ / pc.)
127.925 € *
Available: 0 pcs.
Leadtime: On Request **

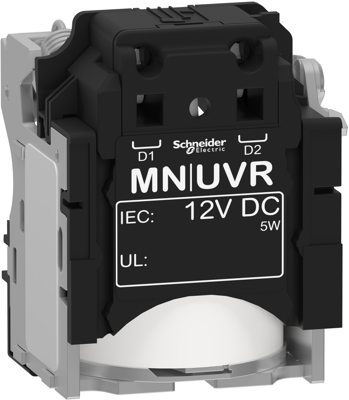

Voltage release, LV429402, Schneider Electric
This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 12 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Technical specifications
| Version | 12 VDC | |
| Suitable for | circuit breaker | |
| Accessory Type | Undervoltage release |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
