LV429403 | Schneider Electric

Undervoltage release, 60 VDC, for circuit breaker, LV429403

Order No.: 03P5293
EAN: 4099889308921
MPN:
LV429403
Series: Compact
Schneider Electric
LV429403 Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
127.925 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
127.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
127.925 €

Voltage release, LV429403, Schneider Electric

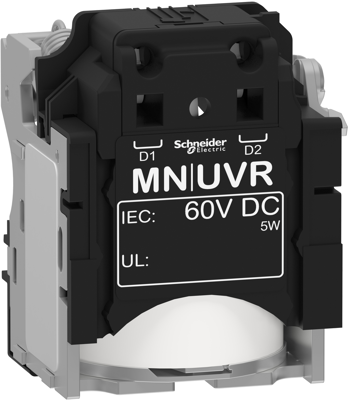

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 60 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.

Technical specifications
Version 60 VDC
Suitable for circuit breaker
Accessory Type Undervoltage release
Logistics
Country of origin PL
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
