LV429406 | Schneider Electric

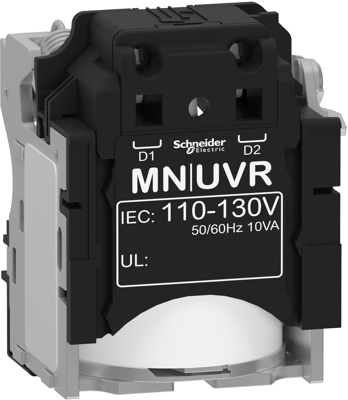

Undervoltage release, 110-130 VAC, for circuit breaker, LV429406
Unit Price (€ / pc.)
127.925 € *
Available: 0 pcs.
Leadtime: On Request **
Voltage release, LV429406, Schneider Electric
This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 110 to 130 VAC 50/60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Technical specifications
| Version | 110-130 VAC | |
| Suitable for | circuit breaker | |
| Accessory Type | Undervoltage release |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
