LV429409 | Schneider Electric

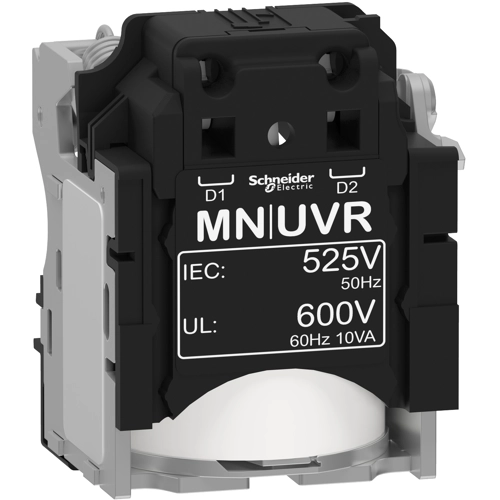

Undervoltage release, 525 VAC/600 VAC, for circuit breaker, LV429409
Unit Price (€ / pc.)
130.1503 € *
Available: 0 pcs.
Leadtime: On Request **
Voltage release, LV429409, Schneider Electric
This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 525 VAC 50 Hz, or 600 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Technical specifications
| Version | 525 VAC/600 VAC | |
| Suitable for | circuit breaker | |
| Accessory Type | Undervoltage release |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
