LV430561 | Schneider Electric

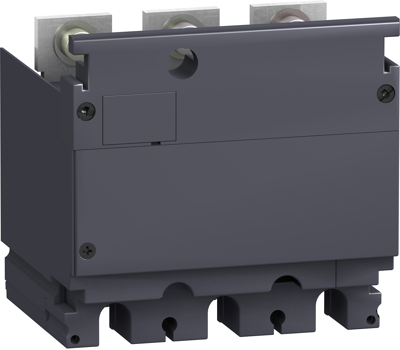

Current transformer module, LV430561, Schneider Electric

This is an additional current transformer module with voltage measurement output of 150A rating for 3 poles Compact NSX 160 devices. This module enables direct connection of a measurement device such as an a mmeter. The module is installed directly on the downstream circuit breaker power terminals. The current at the secondary winding is 5A. The rated voltage Ue is 530 VAC 50/60 Hz. There are 3 voltage outputs including protection with automatic reset, that can be used only for voltage measurement. The power consumption accuracy is 5VA (class 3). There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.
