LV432493 | Schneider Electric
Connector widening, 45 mm to 70 mm, for NSX400/630, LV432493
Unit Price (€ / pc.)
107.10 € *
Available: 0 pcs.
Leadtime: On Request **
Connection widening, LV432493, Schneider Electric

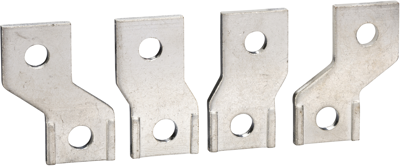

These accessories are spreaders for 3 poles Compact NSX 400/630 and EasyPact CVS 400/630. They are screwed to the circuit-breaker terminals to increase the pitch between poles from 45 mm to 70 mm. The rated current is up to 630 A. These spreaders are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 4 parts.
Technical specifications
| Version | 45 mm to 70 mm | |
| Suitable for | NSX400/630 | |
| Accessory Type | Connector widening |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
