LV432605 | Schneider Electric

Auxiliary switch, for rotary handle, LV432605

Order No.: 03P5861
EAN: 4099889310979
MPN:
LV432605
Series: Compact
LV432605 Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
51.7769 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
51.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
51.7769 €

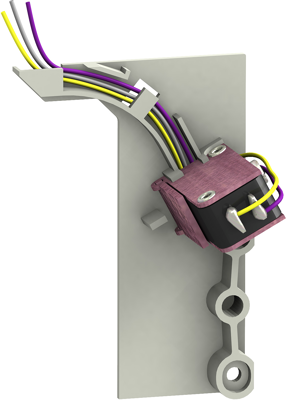

Early opener, LV432605, Schneider Electric

it is a single early break contact that indicates the position of the rotary handle for Compact NSX 400/630 and PowerPact Multistandard L circuit breakers. An early break contact (CAM), in conjunction with a rotary handle, can be used to anticipate device opening. The contact fits into the rotary handle unit. This auxiliary contact is a co mmon point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. utilization categories are AC12/AC15/DC12/DC14. Compact NSX and PowerPact chassis can be equipped with 1 early break contact. It complies with IEC 60947-5-1 standard.

Technical specifications
Geeignet für Drehgriff
Zubehörart Hilfsschalter
Logistics
Ursprungsland FR
Zolltarifnummer 85389099
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
