LV432640 | Schneider Electric

Motor drive, 110-130 VAC, for NSX400/630, LV432640

Order No.: 03P5871
EAN: 4099889311075
MPN:
LV432640
Series: Compact
Schneider Electric
LV432640 Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
981.75 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
981.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
981.75 €

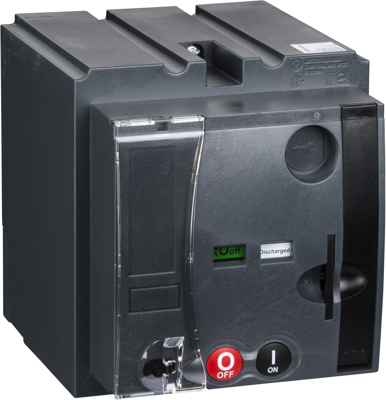

Motor drive, LV432640, Schneider Electric

This is a standard motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 110 VAC to 130 VAC 50/60 Hz. The consumption is less than 500VA. Padlocking of the device remains possible.

Technical specifications
Version 110-130 VAC
Suitable for NSX400/630
Accessory Type motor drive
Logistics
Country of origin IT
Customs tariff number 85371091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
