LV432643 | Schneider Electric

Motor drive, 24-30 VDC, for NSX400/630, LV432643

Order No.: 03P5874
EAN: 4099889311105
MPN:
LV432643
Series: Compact
Schneider Electric
LV432643 Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
1,044.2369 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,044.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,044.2369 €

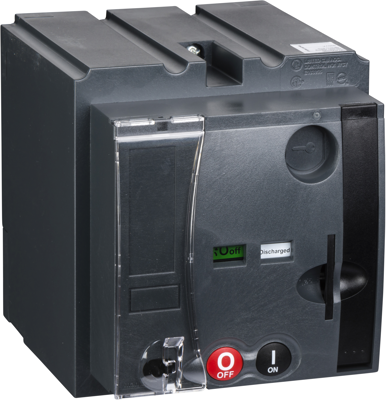

Motor drive, LV432643, Schneider Electric

This is a standard motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 24VDC to 30 VDC. The consumption is less than 500W. Padlocking of the device remains possible.

Technical specifications
Version 24-30 VDC
Suitable for NSX400/630
Accessory Type motor drive
Logistics
Country of origin IT
Customs tariff number 85371091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
