LV432652 | Schneider Electric

Motor drive, 220-240 VAC, for NSX400/630, LV432652

Order No.: 03P5881
EAN: 4099889311174
MPN:
LV432652
Series: Compact
Schneider Electric
LV432652 Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
1,725.5119 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,725.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,725.5119 €

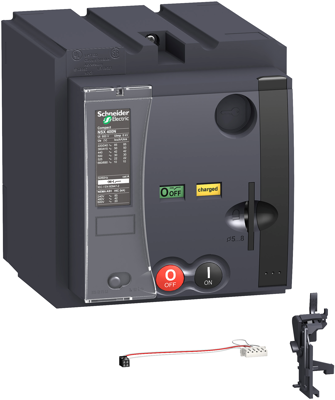

Motor drive, LV432652, Schneider Electric

This is a communicating motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. This communicating motor mechanism can receive external opening and closing orders. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this communicating motor mechanism module is 220 VAC to 240 VAC 50/60 Hz. The consumption is less than 500VA. Padlocking of the device remains possible.

Technical specifications
Version 220-240 VAC
Suitable for NSX400/630
Accessory Type motor drive
Logistics
Country of origin IT
Customs tariff number 85371091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
