LV432861 | Schneider Electric

Current transformer module, for NSX630, LV432861

Order No.: 03P5929
EAN: 4099889311242
MPN:
LV432861
Series: Compact
LV432861 Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
886.5619 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
886.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
886.5619 €

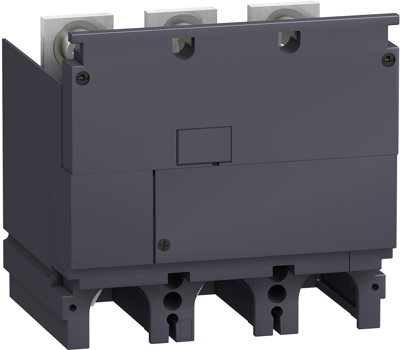

Current transformer, LV432861, Schneider Electric

This is an additional current transformer module of 600A rating with voltage measurement output for 3 poles ComPact NSX630 devices. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 600A and the operational voltage is 530 VAC 50/60 Hz. The current at the secondary winding is 5A. The power consumption is 2VA. The class accuracy is 0.5. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.

Technical specifications
Geeignet für NSX630
Zubehörart Stromwandlermodul
Logistics
Ursprungsland FR
Zolltarifnummer 85043129
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
Nachhaltig Yes
