Chassis, LV848393, Schneider Electric

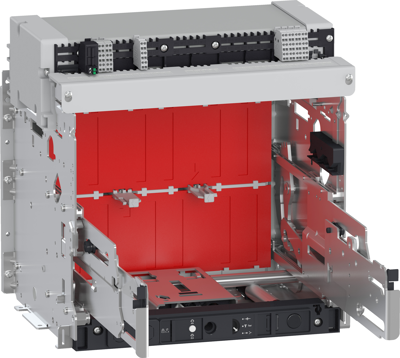

This device is a chassis for drawout (withdrawable) MasterPact MTZ2 circuit breaker or switch disconnector in 3 poles version. The rated current of this chassis is from 800A up to 1600A, for circuit breakers with H2 performance level. The rated current is 2000A, for circuit breakers with N1/H1/H2/H2V/H10 performance level. The rated current is from 800A up to 1600A, for HF switch disconnectors. The rated current is 2000A, for HA/HF/HH/HA10 switch disconnectors. The drawout version brings some benefits compared to fixed version with visible separation of the power contacts via racking out. It offers also an easy and complete access to the device for periodic maintenance, and the possibility of a quick replacement of the device if necessary. MasterPact MTZ is the last generation of high current air circuit breakers and switch disconnectors embedding advanced digital technologies. MasterPact MTZ is compliant with international standards IEC 60947 - 1 and IEC 60947 - 2.
