LV848407 | Schneider Electric

Chassis, (L x W x H) 403 x 556 x 439 mm, for MTZ2 32 H1/H2/H3/HA/HF, LV848407

Order No.: 03P7056
EAN: 4099889314274
MPN:
LV848407
Series: Masterpact MTZ
LV848407 Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
5,097.6625 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
5,097.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5,097.6625 €

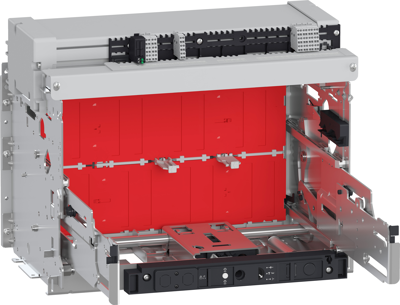

Chassis, LV848407, Schneider Electric

This is a chassis for drawout 4 poles Masterpact MTZ2 32 N1/H1/H2//H3/H10 circuit breakers and MTZ2 32 HA/HA10 switch disconnectors. The drawout version brings some benefits compared to fixed version with visible separation of the power contacts via racking out. It offers also an easy and complete access to the device for periodic maintenance, and the possibility of a quick replacement of the device if necessary. Masterpact MTZ is the last generation of high current air circuit breakers up to 6300 A embedding advanced digital technologies. Masterpact MTZ is designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults. The rated current of this chassis is 3200 A.

Technical specifications
Breite 556 mm
Geeignet für MTZ2 32 H1/H2/H3/HA/HF
Höhe 439 mm
Länge 403 mm
Zubehörart Chassis
Logistics
Ursprungsland FR
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
Nachhaltig Yes
