LV848411 | Schneider Electric

Slide-in cartridge, (L x W x H) 403 x 556 x 439 mm, for MTZ2 08-16 L1, LV848411

Order No.: 03P7059
EAN: 4099889314298
MPN:
LV848411
Series: Masterpact MTZ
LV848411 Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
3,767.8494 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3,767.85 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3,767.8494 €

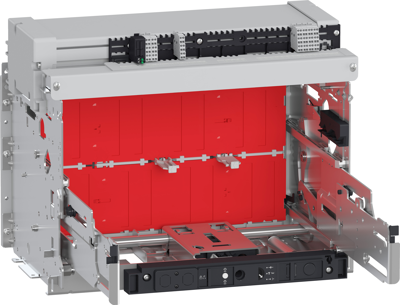

Chassis, LV848411, Schneider Electric

This device is a chassis for drawout (withdrawable) MasterPact MTZ2 circuit breaker in 4 poles version. The rated current of this chassis is from 800A up to 1600A, for circuit breakers with L1 performance level. The drawout version brings some benefits compared to fixed version with visible separation of the power contacts via racking out. It offers also an easy and complete access to the device for periodic maintenance, and the possibility of a quick replacement of the device if necessary. MasterPact MTZ is the last generation of high current air circuit breakers and switch disconnectors embedding advanced digital technologies. MasterPact MTZ is compliant with international standards IEC 60947 - 1 and IEC 60947 - 2.

Technical specifications
Breite 556 mm
Geeignet für MTZ2 08-16 L1
Höhe 439 mm
Länge 403 mm
Zubehörart Einschubkassette
Logistics
Ursprungsland FR
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
Nachhaltig Yes
