NSYTRR22PE | Schneider Electric

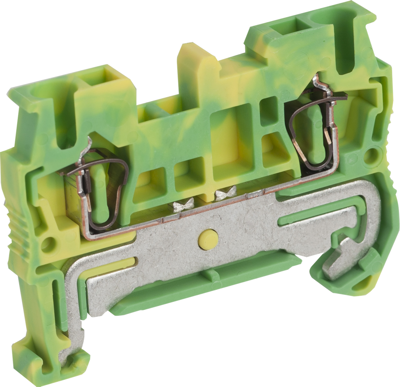

Ground terminal, 2 pole, 0.08-2.5 mm², clamping points: 2, green/yellow, spring balancer connection, NSYTRR22PE
Unit Price (€ / pc.)
3.8199 € *
Available: 0 pcs.
Leadtime: On Request **
Terminal block, NSYTRR22PE, SCHNEIDER
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 2.5 mm² nominal cross section. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connected and disconnected by a flat screwdriver. Ambient air temperature for operation is from - 40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Features
- Releasing pressure on the sides stops the flow of cable ends
- Facilitates storage by avoiding mixing cable ends of different sizes
- Identifies the cross section of cable ends it contains
- Environmental performance of the product
Technical specifications
| Connection | spring balancer connection | |
| Number of terminals | 2 | |
| Version | ground terminal | |
| Colour | green/yellow | |
| Cable cross-section | 0.08-2.5 mm² | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
