NSYTRR42 | Schneider Electric

Terminal block, 2 pole, 0.2-4.0 mm², clamping points: 2, gray, spring balancer connection, 32 A, NSYTRR42

Order No.: 04P3829
EAN: 4099891040451
MPN:
NSYTRR42
Series: Acti 9 iSW-NA

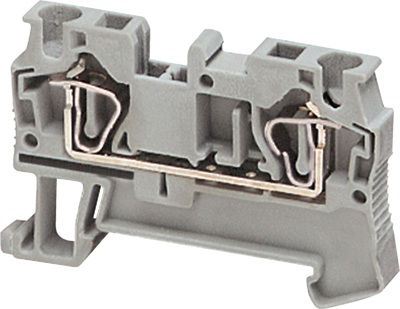

NSYTRR42 Schneider Electric Terminal Blocks
Image may differ
Unit Price (€ / pc.)
1.8207 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1.82 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8207 €
10 pcs.
1.7255 €
25 pcs.
1.6303 €
50 pcs.
1.5351 €
100 pcs.
1.4756 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal block, NSYTRR42, SCHNEIDER

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600 V conforming to CSA/cURus and 800 V conforming to EN/IEC 60947-7-1. The rated current is 32 A conforming to EN/IEC 60947-7-1 and 30 A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Ambient air temperature for operation is from - 40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Features

  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
  • Environmental performance of the product
Technical specifications
Anschluss Federzuganschluss
Anzahl der Klemmstellen 2
Ausführung Klemmenleiste
Farbe grau
Leiterquerschnitt 0,2-4,0 mm²
Nennstrom 32 A
Polzahl 2-polig
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
