NSYTRV44D | Schneider Electric

Terminal block, 4 pole, 0.2-4.0 mm², clamping points: 2, gray, screw connection, 30 A, NSYTRV44D

Order No.: 04P3886
EAN: 4099891041007
MPN:
NSYTRV44D
Series: Acti 9 iSW-NA
NSYTRV44D Schneider Electric Terminal Blocks

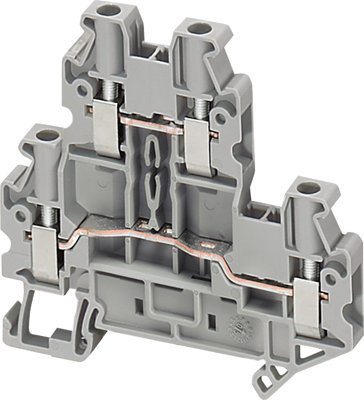

Image may differ
Unit Price (€ / pc.)
6.1404 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
6.14 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1404 €
5 pcs.
5.8548 €
10 pcs.
5.5930 €
25 pcs.
5.2836 €
50 pcs.
5.0099 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal block, NSYTRV44D, SCHNEIDER

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600 V conforming to CSA/cURus, 800 V conforming to EN/IEC 60947-7-1 and 440V conforming to ATEX Exe II Ex II 2 GD. The rated current is 30 A conforming to EN/IEC 60947-7-1, 30 A conforming to CSA/cURus and 25.5 A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by double-level 1x1 screw terminals. It could be connected and disconnected by a screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Ambient air temperature for operation is from - 40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Features

  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
  • Environmental performance of the product
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Klemmenleiste
Farbe grau
Leiterquerschnitt 0,2-4,0 mm²
Nennstrom 30 A
Polzahl 4-polig
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
Nachhaltig Yes
