NSYTRV702 | Schneider Electric

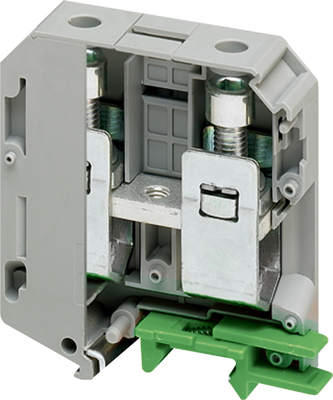

Terminal block, 2 pole, 25-70 mm², clamping points: 2, gray, screw connection, 192 A, NSYTRV702

Order No.: 04P3896
EAN: 4099891041106
MPN:
NSYTRV702
Series: Linergy
NSYTRV702 Schneider Electric Terminal Blocks
Image may differ
Unit Price (€ / pc.)
34.8908 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
34.89 € *
Price list
Quantity
Price per unit*
1 pcs.
34.8908 €
3 pcs.
33.4866 €
5 pcs.
32.2014 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal block, NSYTRV702, SCHNEIDER

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 70 mm² nominal cross section. The rated operational voltage is 600 V conforming to cURus, 1000 V conforming to CSA and 1000 V conforming to EN/IEC 60947-7-1. The rated current is 192 A conforming to EN/IEC 60947-7-1 and 192 A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connected and disconnected by a screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 10 units. Ambient air temperature for operation is from - 40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Features

  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
  • Environmental performance of the product
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Klemmenleiste
Farbe grau
Leiterquerschnitt 25-70 mm²
Nennstrom 192 A
Polzahl 2-polig
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
