RE17LAMW | Schneider Electric
Time relay, 0.1 s to 100 h, delayed switch-on, 1 Form C (NO/NC), 24-240 V AC/DC, 0.01 A/250 VAC, RE17LAMW
Unit Price (€ / pc.)
42.5782 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
42.58 € *
Price list
Quantity
Price per unit*
1 pcs.
42.5782 €
5 pcs.
41.4239 €
*incl. VAT plus shipping costs
**Subject to prior sale

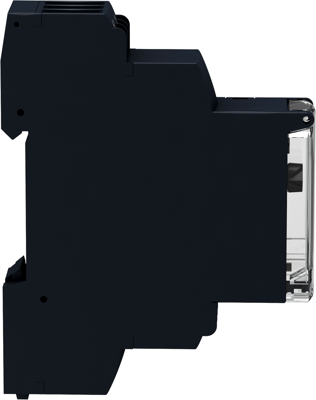

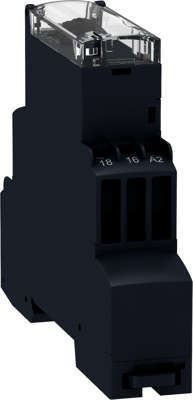

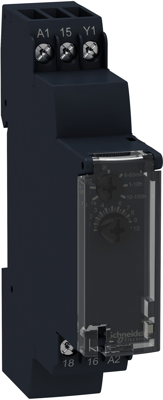

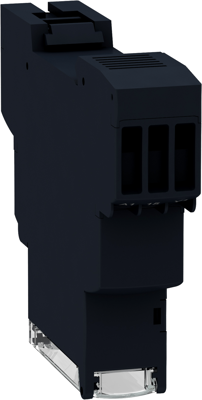

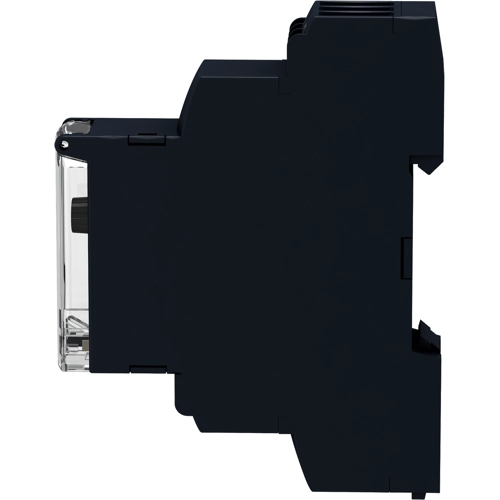

Timing relay, RE17LAMW, Schneider Electric
This Zelio RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7 A, is 17.5 mm wide and can be supplied with 24 V to 240V AC/DC. It also has 2 changeover contacts DPDT (double pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. 17.5 mm width: same size as a 1-pole circuit breaker, to simplify your panel design. Single function timer for a simple integration in hard-wired logic schematics: ideal for refurbishment of old installations without using a PLC.
Technical specifications
| Connection | screw connection | |
| Function | delayed switch-on | |
| Contact type | 1 Form C (NO/NC) | |
| Breaking capacity | 0.01 A/250 VAC | |
| Voltage | 24-240 V AC/DC | |
| Time display | 0.1 s to 100 h |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 91070000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Sustainable | Yes |
