Multifunction relay, 0.1 s to 100 h, 10 functions, 24-240 VAC, 0.01 A/250 VAC, RE17LMBM
As a private customer, you can buy this item as soon as we have it back in stock.

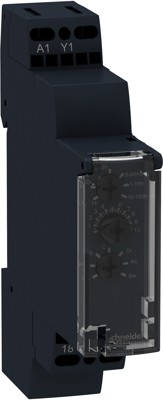

Timing relay, RE17LMBM, Schneider Electric
This Zelio RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7 A, is 17.5 mm wide and can be supplied with 24 V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. multi function timer for a simple integration in hard-wired logic schematics: ideal for refurbishment of old installations without using a PLC.
Technical specifications
| Connection | screw connection | |
| Function | 10 functions | |
| Breaking capacity | 0.01 A/250 VAC | |
| Voltage | 24-240 VAC | |
| Time display | 0.1 s to 100 h |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 91070000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Sustainable | Yes |
