RE17RAMU | Schneider Electric
Time relay, 0.1 s to 100 h, delayed switch-on, 1 Form C (NO/NC), 24-240 VAC, 8 A/250 VAC, RE17RAMU
Unit Price (€ / pc.)
35.9856 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
35.99 € *
Price list
Quantity
Price per unit*
1 pcs.
35.9856 €
5 pcs.
35.0217 €
*incl. VAT plus shipping costs
**Subject to prior sale

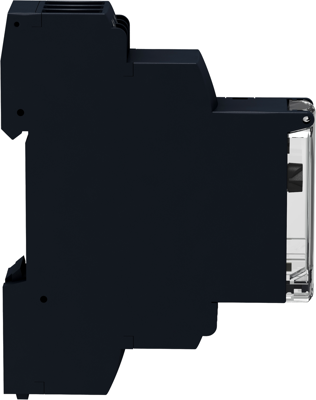

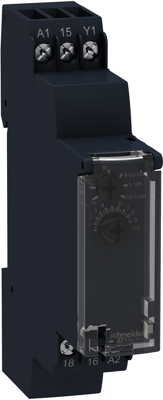

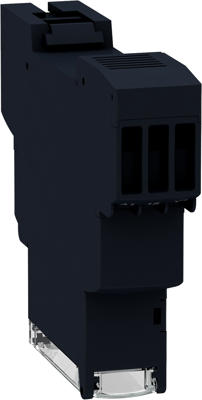

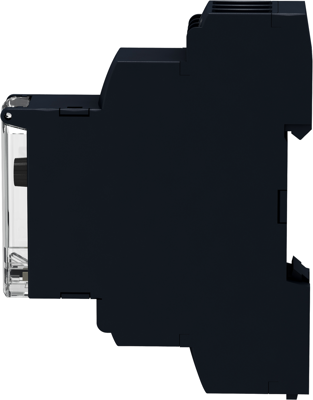

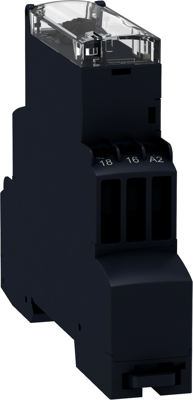

Timing relay, RE17RAMU, Schneider Electric
This Zelio RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8 A, is 17.5 mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers pause and summation control signals. Single function timer for a simple integration in hard-wired logic schematics: ideal for refurbishment of old installations without using a PLC.
Technical specifications
| Connection | screw connection | |
| Function | delayed switch-on | |
| Contact type | 1 Form C (NO/NC) | |
| Breaking capacity | 8 A/250 VAC | |
| Voltage | 24-240 VAC | |
| Time display | 0.1 s to 100 h |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 91070000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Sustainable | Yes |
