RE17RMEMU | Schneider Electric
Multifunction relay, 0.1 s to 10 h, 8 functions, 1 Form C (NO/NC), 24-240 V AC/DC, 8 A/250 VAC, RE17RMEMU
Unit Price (€ / pc.)
52.1934 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
52.19 € *
Price list
Quantity
Price per unit*
1 pcs.
52.1934 €
5 pcs.
50.7773 €
*incl. VAT plus shipping costs
**Subject to prior sale

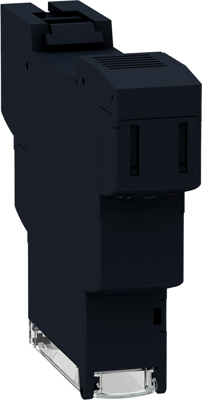

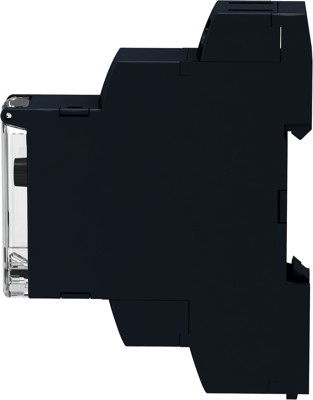

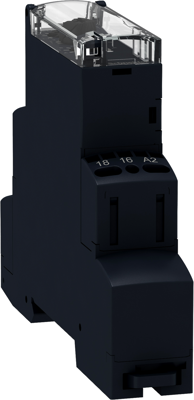

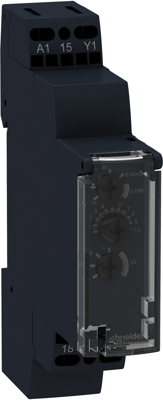

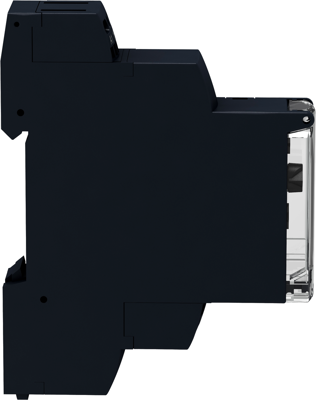

Timing relay, RE17RMEMU, Schneider Electric
This Zelio RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8 A, is 17.5 mm wide and can be supplied with 24V DC, 24 V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. multi function timer for a simple integration in hard-wired logic schematics: ideal for refurbishment of old installations without using a PLC.
Technical specifications
| Anschluss | Schraubanschluss | |
| Funktion | 8 Funktionen | |
| Kontaktart | 1 Wechsler | |
| Schaltleistung | 8 A/250 VAC | |
| Spannung | 24-240 V AC/DC | |
| Zeitanzeige | 0,1 s bis 10 h |
Download
Logistics
| Ursprungsland | ID |
| Zolltarifnummer | 91070000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | 1,2-Dimethoxyethan; Ethylenglykoldimethylether (EGDME) |
| Nachhaltig | Yes |
