RE22R2MYMR | Schneider Electric
Multifunction relay, 0.05 s to 300 h, 22 functions, 2 Form C (NO/NC), 24-240 V AC/DC, 8 A/250 VAC, RE22R2MYMR
Unit Price (€ / pc.)
78.5281 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
78.53 € *
Price list
Quantity
Price per unit*
1 pcs.
78.5281 €
5 pcs.
76.3980 €
*incl. VAT plus shipping costs
**Subject to prior sale

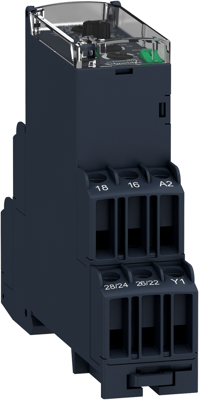

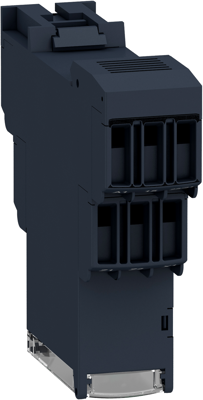

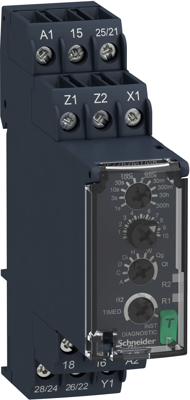

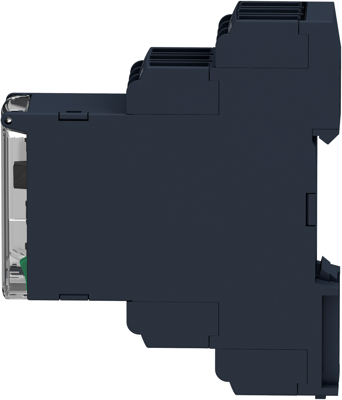

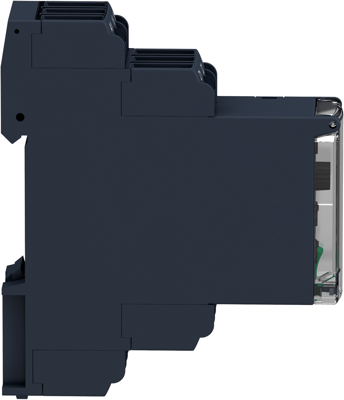

Multifunction time relay, RE22R2MYMR, Schneider Electric
This Zelio RE22 timing relay can be set between 0.05 seconds and 300 hours, has an output rating of 8 A, is 22.5 mm wide and can be supplied with 24V to 240V AC. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail. It also offers a sealable cover, simple and precise settings with rotary trimmers. multi function timer for a simple integration in hard-wired logic schematics: ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs: visually inspect the status of you system without specialized tools. Diagnostic button allows simple setup and trouble shooting by non-specialists.
Technical specifications
| Connection | screw connection | |
| Function | 22 functions | |
| Contact type | 2 Form C (NO/NC) | |
| Breaking capacity | 8 A/250 VAC | |
| Voltage | 24-240 V AC/DC | |
| Time display | 0.05 s to 300 h |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Sustainable | Yes |
