RE48AMH13MW | Schneider Electric
Wiping relay, 0.02 s to 300 h, 2 functions, 2 Form C (NO/NC), 24-240 V AC/DC, 5 A/250 VAC, RE48AMH13MW
Unit Price (€ / pc.)
88.298 € *
Available: 0 pcs.
Leadtime: On Request **

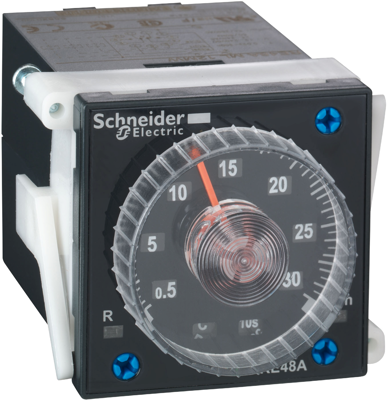

Time relay, RE48 AMH13MW, Schneider Electric
This Zelio RE48 timing relay can be set between 0.2 seconds and 300 hours, has an output rating of 5 A, is 22.5 mm wide. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for both panel mouting or socket plug in, this gives more flexibility in designing installations and stocking spares. multi function timer for a simple integration in hard-wired logic schematics: ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs: visually inspect the status of you system without specialized tools.
Technical specifications
| Connection | plug-in connection | |
| Function | 2 functions | |
| Contact type | 2 Form C (NO/NC) | |
| Breaking capacity | 5 A/250 VAC | |
| Voltage | 24-240 V AC/DC | |
| Time display | 0.02 s to 300 h |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 91070000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
