RE48AML12MW | Schneider Electric

Multifunction relay, 0.02 s to 300 h, 4 functions, 2 Form C (NO/NC), 24-240 V AC/DC, 5 A/250 VAC, RE48AML12MW

Order No.: 04P5623
EAN: 4099889351552
MPN:
RE48AML12MW
Series: Harmony
Schneider Electric
RE48AML12MW Schneider Electric Time Relays
Image may differ
Unit Price (€ / pc.)
88.298 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
88.30 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
88.298 €

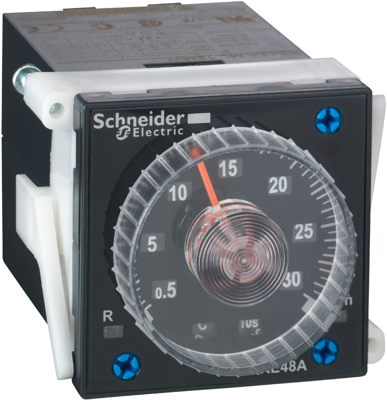

Time relay, RE48 AML12MW, Schneider Electric

This Zelio RE48 timing relay can be set between 0.2 seconds and 300 hours, has an output rating of 5 A, is 48 mm wide and can be supplied with 24 V to 240V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for both panel mouting or socket plug in, this gives more flexibility in designing installations and stocking spares. multi function timer for a simple integration in hard-wired logic schematics: ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs: visually inspect the status of you system without specialized tools.

Technical specifications
Connection plug-in connection
Function 4 functions
Contact type 2 Form C (NO/NC)
Breaking capacity 5 A/250 VAC
Voltage 24-240 V AC/DC
Time display 0.02 s to 300 h
Logistics
Country of origin ID
Customs tariff number 91070000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
