ATV320U02M2W | Schneider Electric

Frequency converter, 1-phase, 0.18 kW, 200 V, 1.5 A, ATV320U02M2W

Order No.: 06N0242
EAN: 3606489548391
MPN:
ATV320U02M2W
Schneider Electric
ATV320U02M2W Schneider Electric Variable speed drive and Accessories
Image may differ
Unit Price (€ / pc.)
425.4131 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
425.41 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
425.4131 €

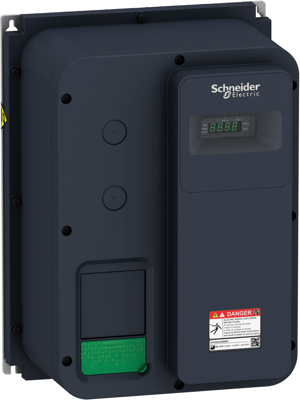

Frequency converter, ATV320U02M2W, Schneider Electric

This Altivar 320 variable speed drive can feed single-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 0.18kW / 0.25hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling.

It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module.

Features

  • Save time and space
  • Less downtime and maintenance costs
  • Optimized for ventilation and pumping applications: up to 30% energy savings
  • Advanced connectivity reduce your initial investment while keeping flexibility in design
Technical specifications
Number of phases 1
Version Frequency converter
Output current 1.5 A
Width 250 mm
Height 340 mm
Power 0.18 kW
Rated voltage 200 V
Depth 182 mm
Logistics
Country of origin ID
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
