ATV630D37Y6428 | Schneider Electric
Frequency converter, 3-phase, 37 kW, 690 V, 45 A for synchronous/asynchronous motors, ATV630D37Y6428
Unit Price (€ / pc.)
8,380.5631 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
8,380.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8,380.5631 €

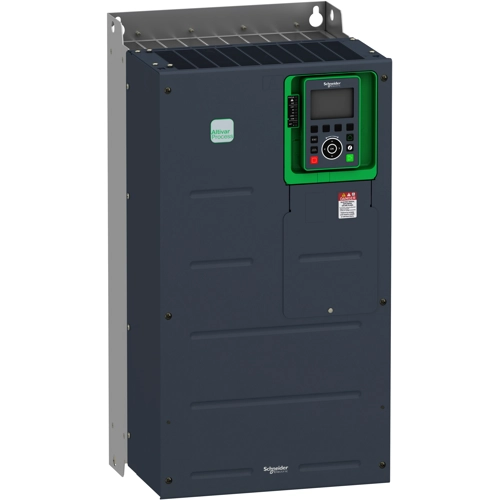

Frequency converter, ATV630D37Y6428, Schneider Electric
The ATV630 is a variable speed drive with a power rating of 37 kW/50 HP, designed to operate at voltages of 500 V/690 V. It is built with an IP00 enclosure and holds marine certification, making it suitable for marine applications.
Technical specifications
| Number of phases | 3 | |
| Version | Frequency converter | |
| Output current | 45 A | |
| Width | 331 mm | |
| Suitable for | synchronous/asynchronous motors | |
| Height | 630 mm | |
| Power | 37 kW | |
| Rated voltage | 690 V | |
| Depth | 297 mm |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
