ATV650D45N4EU | Schneider Electric
Frequency converter, 3-phase, 45 kW, 480 V, 87 A for synchronous/asynchronous motors, ATV650D45N4EU
Unit Price (€ / pc.)
6,076.9611 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
6,076.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6,076.9611 €

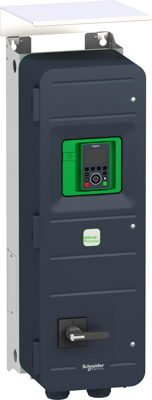

Frequency converter, ATV650D45N4EU, Schneider Electric
The Altivar Process ATV600/ATV650 is a variable speed drive with a power rating of 45kW, designed to operate within a voltage range of 400 to 480V. It is also rated IP55 for protection against dust and water ingress.
Technical specifications
| Number of phases | 3 | |
| Version | Frequency converter | |
| Output current | 87 A | |
| Width | 290 mm | |
| Suitable for | synchronous/asynchronous motors | |
| Height | 910 mm | |
| Power | 45 kW | |
| Rated voltage | 480 V | |
| Depth | 401 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
