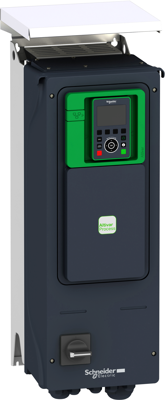

Frequency converter, ATV950U22N4EU, Schneider Electric
The ATV950 2.2kW, 400/480V Tri-phase, IP55, UL type 12, Ethernet ports, variable speed drive meets the needs of motor control in industrial processes and infrastructures requiring advanced control. EMC filter (C2). This variable speed drive, with braking unit, is designed to be mounted in a vertical position (+/- 10°) on a wall. Thanks to its connectivity, this product can manage advanced process functions (Master-Slave, brake control) in the following market segments: oil and gas, mining, minerals and metals, water for food and beverages and wastewater. It has been designed to withstand the harshest industrial environments such as the electro-intensive process segments: Steel, Oil, Handling, Material extraction, etc
This variable speed drive is designed to offer maximum productivity thanks to exceptional motor control and connectivity allowing easy access via a PC, tablet or smartphone. The product’s advanced connectivity, including EtherNet/IP and Modbus TCP, enables deep integration into automation architectures.
