ATV950U75N4U | Schneider Electric
Frequency converter, 3-phase, 7.5 kW, 480 V, 16.5 A for synchronous/asynchronous motors, ATV950U75N4U
Unit Price (€ / pc.)
2,019.7989 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
2,019.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,019.7989 €

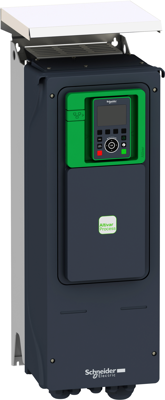

Frequency converter, ATV950U75N4U, Schneider Electric
The altivar process ATV900/ATV950 is a variable speed drive with a power rating of 7.5kW or 10hp, suitable for voltage inputs ranging from 380 to 480V. It is designed with an IP55 rating and conforms to UL type 12 standards.
Technical specifications
| Number of phases | 3 | |
| Version | Frequency converter | |
| Output current | 16.5 A | |
| Width | 264 mm | |
| Suitable for | synchronous/asynchronous motors | |
| Height | 678 mm | |
| Power | 7.5 kW | |
| Rated voltage | 480 V | |
| Depth | 299 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
