ATVRU75N4 | Schneider Electric
Regenerative unit, 3-phase, 7.5 kW, 400 V, 13.4 A for Frequency converter, ATVRU75N4
Unit Price (€ / pc.)
1,078.854 € *
Available: 0 pcs.
Leadtime: 1 Week **

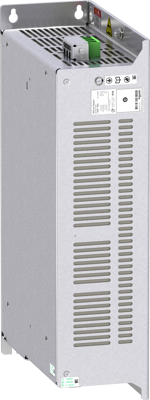

Regenerative unit, ATVRU75N4, Schneider Electric
This regenerative unit is an option for variable speed drives of Altivar range. It has built in EMC filter compliant with standard IEC 61800-3. Its rated power is equal to 7.5kW. The main function of the ATV Regen product is to provide an option to regenerate energy back to the AC supply. Its protection index is IP20. Its maximum operating temperature is 50 °C. It weighs 6kg and its dimensions are 80mm wide, 337mm high, 175mm deep. It is designed for heavy braking applications such as material working, material handling and hoisting with easy setting.
Features
- Plug-and-work solution
- Easy to install
- For simple industrial machines
- Energy saving
- Less timefor wiring and design
Technical specifications
| Number of phases | 3 | |
| Version | regenerative unit | |
| Output current | 13.4 A | |
| Width | 80 mm | |
| Suitable for | Frequency converter | |
| Height | 337 mm | |
| Power | 7.5 kW | |
| Rated voltage | 400 V | |
| Depth | 175 mm |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
