VW3A3409 | Schneider Electric
Encoder interface card, 12 V, for Altivar series, VW3A3409
Order No.: 06N1091
EAN: 3389119214209
MPN:
VW3A3409
Unit Price (€ / pc.)
220.7212 € *
Available: 0 pcs.
Leadtime: 1 Week **

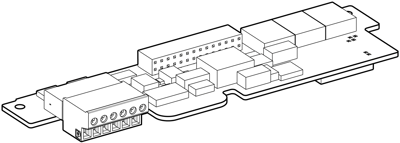

Encoder interface card, VW3A3409, Schneider Electric
This universal encoder interface card is an option for variable speed drives of Altivar range. It is compatible with Altivar 71. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 200g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.
Features
- Enhance drive performance
- Push-pull technology compatible
- Easy to install
- For FVC and FSY mode operation
Technical specifications
| Version | encoder interface card | |
| Suitable for | Altivar series | |
| Rated voltage | 12 V |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85176200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
