VW3A4555 | Schneider Electric
Line choke, 3-phase, for Frequency converter, VW3A4555
Unit Price (€ / pc.)
778.6408 € *
Available: 0 pcs.
Leadtime: 1 Week **

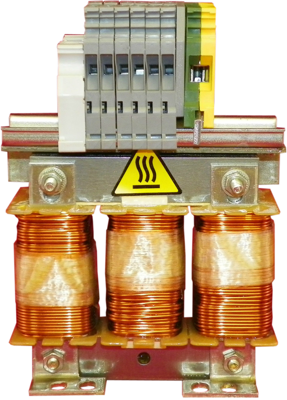

Line/motor choke, VW3A4555, Schneider Electric
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 60A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 0.5mH. It weighs 11kg and its dimensions are, 180mm wide, 210mm high, 165mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.
Technical specifications
| Number of phases | 3 | |
| Version | line choke | |
| Width | 180 mm | |
| Suitable for | Frequency converter | |
| Height | 210 mm | |
| Depth | 165 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85045000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
