VW3A46133 | Schneider Electric
Passive filter, 3-phase, 400 V, 225 A for Frequency converter, VW3A46133
Unit Price (€ / pc.)
13,055.6447 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
13,055.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
13,055.6447 €

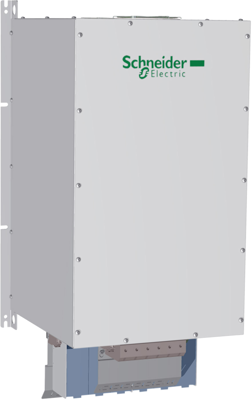

Passive filter, VW3A46133, Schneider Electric
This passive filter is an option for variable speed drives of Altivar range. Its rated current is equal to 225A. It is used as an input filter in order to obtain total harmonic distortion of less than 10% or 5%. Its protection index is IP20. It weighs 172kg and its dimensions are, 468mm wide, 900.06mm high, 448.5mm deep. It is designed to be used for drives in the first environment (restricted distribution, domestic applications).
Technical specifications
| Number of phases | 3 | |
| Version | passive filter | |
| Output current | 225 A | |
| Width | 420 mm | |
| Suitable for | Frequency converter | |
| Height | 900 mm | |
| Rated voltage | 400 V | |
| Depth | 448.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85480090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
